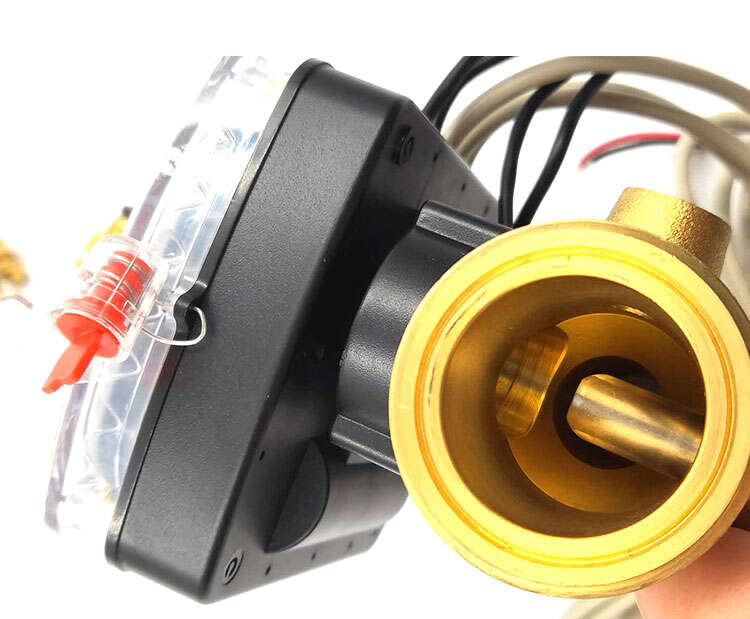

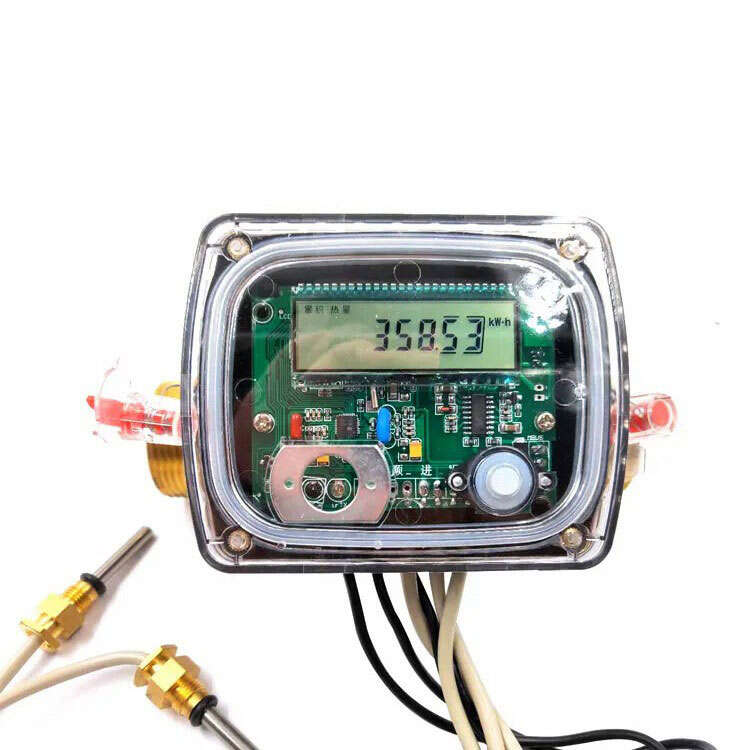

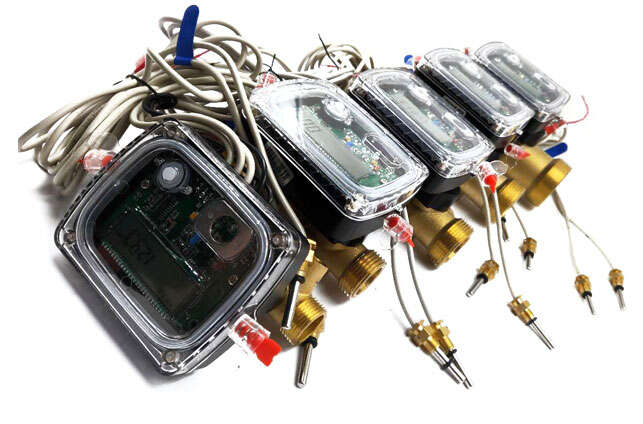

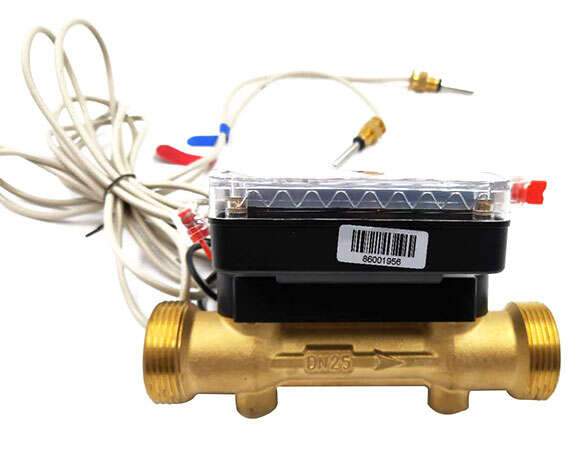

Ultrasonic Heat Meter
Ultrasonic Heat Meter
-
0.00 ~ 0.00/
1/ (Min. Order)
An ultrasonic heat meter is a device that measures the amount of heat energy consumed by a heating system using ultrasonic technology. The device consists of two ultrasonic transducers, which are installed on either side of a pipe carrying the heating fluid.
Contact us
Inquiry Basket
Product Code：
US213A
OEM：
Refuse
Sample：
Available
Payment：
L/C,T/T,D/P,D/A
Place of Origin：
China
Supply Ability：
3000 pieces per Day
213A Ultrasonic Heat Meter--DN15 DN20 DN25 DN32 DN50
The advantages of ultrasonic heat meter.
Adopt imported precision electronics components, has high measurement accuracy,
low power consumption and good stability.
This model has no moving parts, Minimal loss of pressure to improve heating quality.
Master CPU:MSP430F4481 (from TI)
Calculated Chip: GP22 (from ACAM)
Memory Chip:24LC08
Communication: M-Bus, Pulse, RS485, LORA, LoRawan, GPRS/GSM, NB-IoT
Adopt imported precision electronics components, has high measurement accuracy,
low power consumption and good stability.
This model has no moving parts, Minimal loss of pressure to improve heating quality.
Master CPU:MSP430F4481 (from TI)
Calculated Chip: GP22 (from ACAM)
Memory Chip:24LC08
Communication: M-Bus, Pulse, RS485, LORA, LoRawan, GPRS/GSM, NB-IoT
Temperature Sensor
1.5m standard a pair of PT1000 Temperature Sensor (cable length could be changed)
Power Supply
High Power Lithium battery
Data Storage
Continuous store of 18 months record
