Bulk Water Meter

Our counter utilizes a dry magnetic transmission structure that ensures neat and clear display. It also features high flow capacity, low pressure loss, and stable performance curves to make your work easier. The measuring core is replaceable and easy to disassemble. We use stainless steel fasteners and epoxy powder-coated housing, both inside and outside, to maximize rust prevention and extend the product's lifespan.

This vertical spiral wing detachable removable water meter has multiple advantages. Firstly, it features a detachable core structure for easy maintenance. Secondly, it has a wide range suitable for environments with significant changes in flow rate. The copper-sealed counter and IP68 waterproof rating effectively prevent fogging, while the internal adjustment structure prevents unauthorized adjustments. The high-wear bearing system ensures product stability and reliability, and can significantly improve maximum flow rate. In addition, the use of advanced thermal spray technology in the industry can improve the anti-corrosion ability of the casing and extend its service life. Finally, this flowmeter can be equipped with a non-magnetic sensor electromechanical conversion module and has RS-485 or M-BUS standard interface.

WPD Horizontal Spiral Wing Detachable Removable Woltman Water Meter is a mechanical water meter designed for pipeline flow measurement. Here are its key features and technical specifications: 1. Structure & Design Detachable Spiral Wing: Features a horizontal dry screw mechanical Woltman structure with a removable spiral wing for easy maintenance and cleaning, ideal for water with impurities. Flange Connection: Standard flange interface (DN50-DN300), compatible with diverse pipeline layouts. Materials: Brass, cast iron, or stainless steel body options for corrosion resistance and durability. 2. Performance Accuracy: Complies with ISO 4064 Class B standards for high-precision measurement. Applications: Designed for municipal water supply and industrial pipelines; supports horizontal installation. Temperature: Suitable for cold water environments.

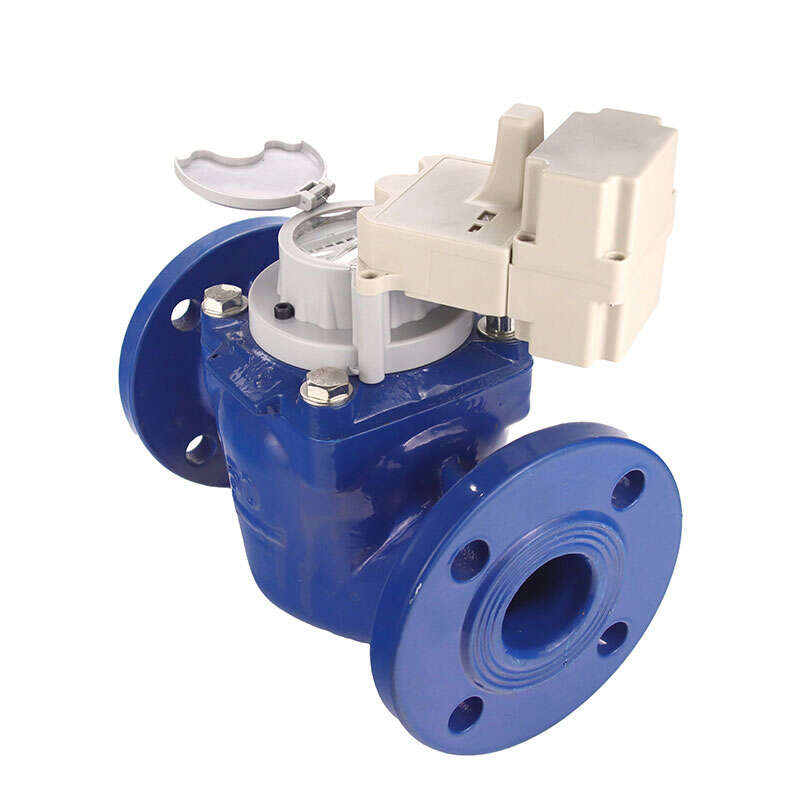

Core Features Vertical Spiral Impeller: Designed with a helical impeller for vertical installation (e.g., narrow pipe spaces), measuring flow via water-driven rotation. Detachable Structure: The meter body and sensor module are separable for easy maintenance, calibration, or component replacement. Wireless Remote Transmission: Supports communication protocols like NB-IoT, LoRa, or 4G to transmit real-time water usage data to management platforms. Technical Specifications Accuracy Class: Complies with ISO 4064 standards, typically R200 (Class 2 accuracy). Communication: Wireless protocols (e.g., LoRaWAN, NB-IoT) with a range of 1–10 km (environment-dependent). Battery Life: Powered by lithium-thionyl chloride batteries, designed for 6–10 years (with daily data transmission). Protection Rating: IP68 waterproofing for harsh environments (e.g., underground or humid installations).
