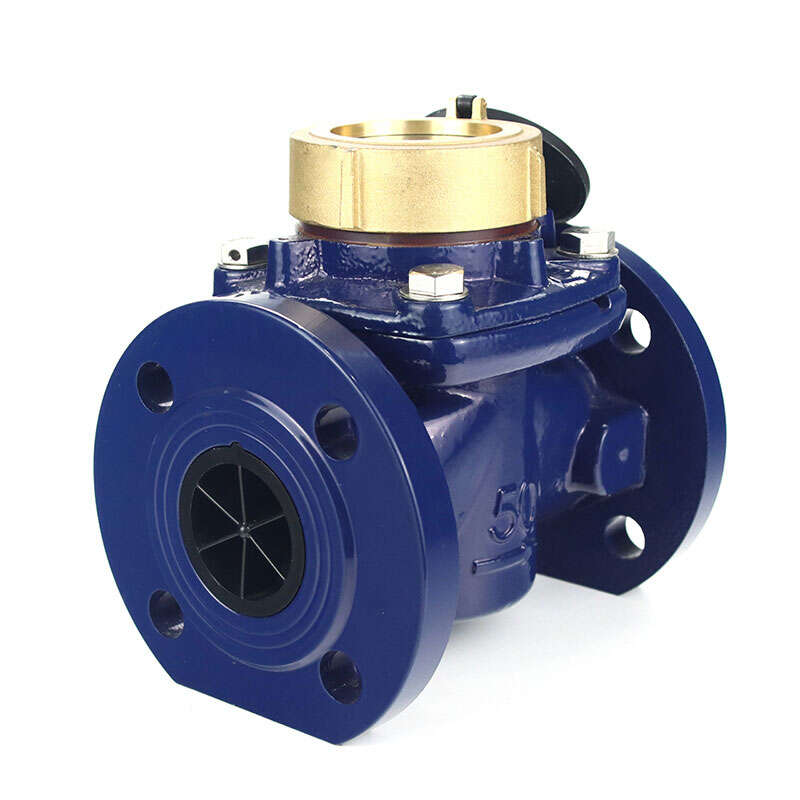

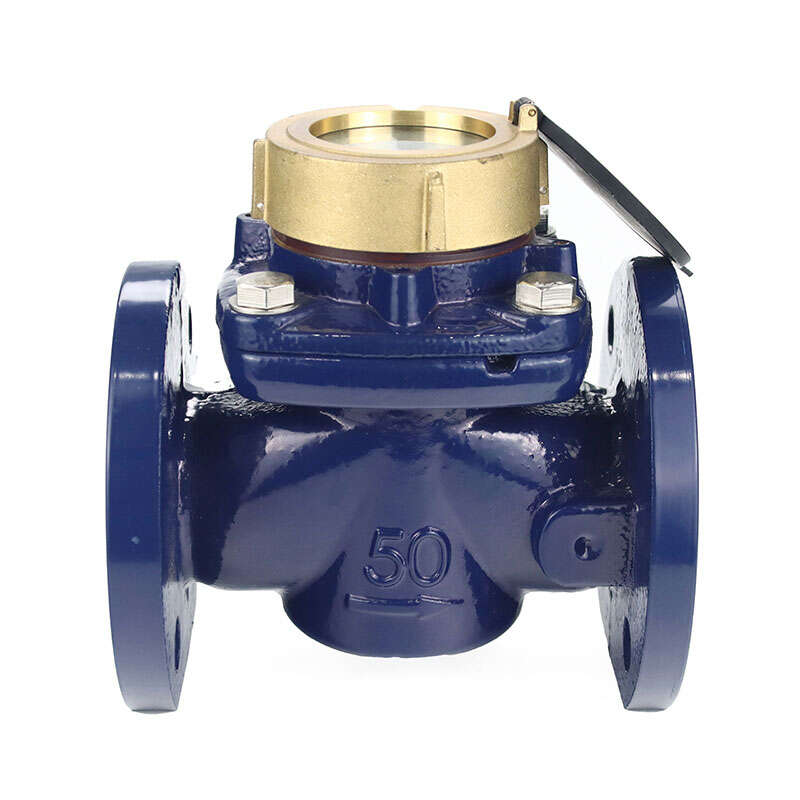

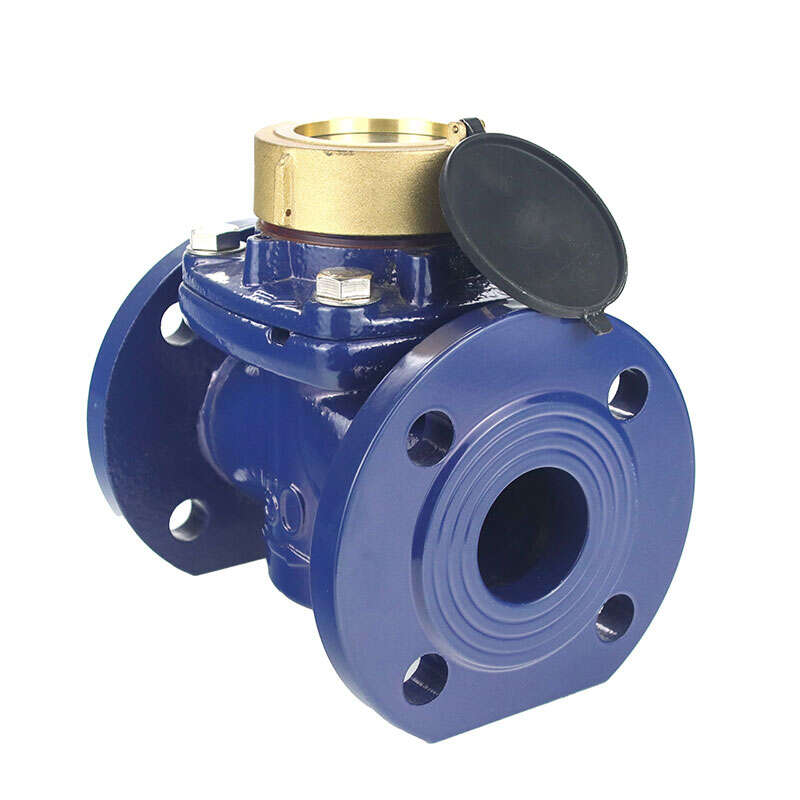

WPD Horizontal Spiral Wing Detachable Removable Woltman Water Meter
-
0.00 ~ 0.00/
1/ (Min. Order)
WPD Horizontal Spiral Wing Detachable Removable Woltman Water Meter is a mechanical water meter designed for pipeline flow measurement. Here are its key features and technical specifications:
1. Structure & Design
Detachable Spiral Wing: Features a horizontal dry screw mechanical Woltman structure with a removable spiral wing for easy maintenance and cleaning, ideal for water with impurities.
Flange Connection: Standard flange interface (DN50-DN300), compatible with diverse pipeline layouts.
Materials: Brass, cast iron, or stainless steel body options for corrosion resistance and durability.
2. Performance

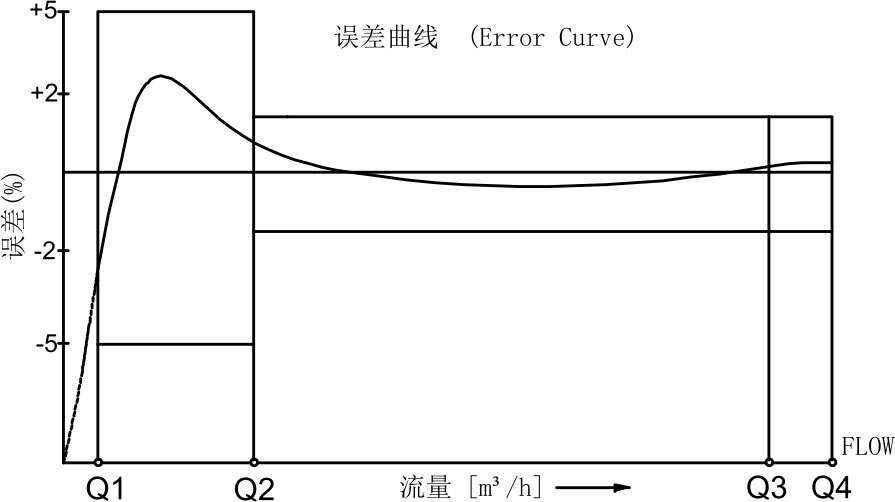

Accuracy: Complies with ISO 4064 Class B standards for high-precision measurement.
Applications: Designed for municipal water supply and industrial pipelines; supports horizontal installation.
Temperature: Suitable for cold water environments.
